An integrated FEM-ANN model for laser bending process with inverse estimation of absorptivity

Mechanics of Advanced Materials and Modern Processes20151:6

DOI: 10.1186/s40759-015-0006-1

Received: 19 March 2015

Accepted: 8 October 2015

Published: 16 October 2015

Abstract

Background

Absorption of laser energy into the worksheet surface during laser bending process is an important and critical factor for accurate computation of the bend angle. This paper presents an integrated FEM-ANN approach to compute accurate value of bend angle during laser bending process.

Methods

Initially, a finite element method (FEM) based three-dimensional nonlinear transient thermo-mechanical numerical model is developed using ABAQUS package. Using FEM model and data obtained in actual experiments, the proper values of absorptivity for various sets of process conditions are computed by inverse analysis technique. Based on the proper values of absorptivity, an artificial neural network (ANN) model is developed for accurate and quick prediction of absorptivity for given input process conditions. The predicted absorptivity is then employed in the FEM model for accurate computation of bend angle.

Results

The performance of the integrated approach is verified by conducting experiments.

Conclusion

The verification results showed that the proposed approach is able to compute the bend angle with a very good accuracy (average prediction error of 4.14 %). The proposed approach can also be suitable for the numerical simulations of other laser based manufacturing processes.

Keywords

Laser bending Absorptivity Inverse analysis Bend angle Artificial neural network (ANN) Finite element method (FEM)

Background

In laser bending process, a controlled heating of the worksheet surface is carried out by laser beam irradiation. This induces non-uniform thermal stresses that plastically deform the worksheet (Li and Yao 2000). The deformation is the result of complex interaction between laser process parameters, viz. laser power, scanning velocity and beam diameter, worksheet material properties and the worksheet geometry. Due to uneven mechanical restraint and temperature distribution, the bend angle is not uniform along the scanning line which is called as ‘edge effect’ (Shen et al. 2010). The important features of laser bending process include absence of spring-back, possibility of forming at inaccessible areas, creation of complex shapes with different irradiation strategies, possibility of bending brittle materials and the easy control of the process (Wu et al. 2010, Kant and Joshi 2013, Kant and Joshi 2014).

Literature reports various numerical investigations on the effect of various parameters such as laser power, scanning velocity, beam diameter, sheet geometry, cooling conditions, number of irradiations and clamping on the process mechanism, bend angle and edge effect for a wide range of materials. Li and Yao (2000) studied the effect of strain rate by taking various combinations of laser power and scanning velocity in such a way that the peak temperature at the upper surface of the worksheet remains constant. They observed that the bend angle, residual stresses and hardness decrease with increase in the strain rate. Hu et al. (2001) studied the effect of process parameters on laser bending of stainless steel. Zhang et al. (2002) developed an efficient numerical model for pulsed laser bending of full-hard 301 stainless steel. The computation time was significantly reduced by the proposed methodology. Yanjin et al. (2005) studied the effect of various thermal and mechanical properties of the workpiece material on bend angle. The bend angle decreased with increase in Young’s modulus, yield strength, thermal conductivity, specific heat and density of the material while it increased with increase in the coefficient of thermal expansion. Shi et al. (2006) explained various laser forming mechanisms (temperature gradient mechanism, buckling mechanism and upsetting mechanism) in terms of temperature and stress–strain distributions. Authors proposed a new coupling mechanism based on the combination of temperature gradient and buckling mechanism. Shen et al. (2009) numerically studied the laser bending of metal/ceramic bi-layer materials sheet. Pitz et al. (2010) proposed the moving mesh methodology approach to reduce the computational time involved in the numerical simulations of laser bending process. They used a fine mesh around the laser beam and coarse mesh in the remaining part. The mesh moved synchronously with the laser beam. Jamil et al. (2011) studied the effect of laser beam geometries on the laser bending process governed by the buckling mechanism. Gollo et al. (2011) performed a statistical analysis to study the effects of material, laser power, beam diameter, scan velocity, sheet thickness, number of scans and pulse duration on bend angle.

Literarure also contains studies on the effect of forced cooling and curvilinear irradiations on the performance of laser bending. Cheng and Yao (2001) found that the forced cooling can significantly reduce the total forming time in a multi-pass laser bending process. They also found that the forced air cooling does not have any harmful effect on micro-structural and mechanical properties of the workpiece. Shen et al. (2011) studied the effect of forced cooling on laser bending of steel plates using finite element based numerical simulations. The forced cooling was applied either on top or bottom or on both the surfaces. It was moving simultaneously with laser beam by an offset of about one second. The forced cooling did not have a significant effect on the bend angle and edge effect. Chen et al. (2004) observed that in a curvilinear laser bending, the deformation occurs on one side of the laser scanning path along which the rigid constraint is lower. Zhang et al. (2007) showed that the peak temperature at the scanning surface and warping increases with the increase in scanning path curvature. Kant and Joshi (2014) observed that the worksheet does not bend over the laser scanning path in the curvilinear laser bending process. The bend line differs from the scanning path and the bending offset increases with the increase in laser power and beam diameter.

The bend angle per laser scan is small and therefore, the laser bending is also carried out with the assistance of mechanical load. Yanjin et al. (2003) showed that pre-loading can increase the bend angle significantly. Yao et al. (2007) presented effect of various pre-loads on laser bending process. They employed pure compression, pure tension and pure bending as pre-loading and observed that pre-loading does not cause any external edge effect. Kant and Joshi (2013) proposed a laser assisted bending with moving mechanical load for bending of large sized worksheets. Gisario et al. (2015a) studied laser assisted bending of AISI 304 stainless steel sheets of 1 mm thickness to obtain a large bend angle upto 140° with a small fillet radius of 2 mm. Gisario et al. (2015b) studied laser assisted origami bending of the stainless steel sheets for shaping the sheets into three dimensional items such as cubes and chairs. They found that the manufactured items have good precision, accuracy and aesthetic appearance.

A few attempts have been reported on artificial neural network (ANN) based modeling of laser bending process. Cheng and Lin (2000) used three supervised neural networks to estimate the bend angles, viz., (1) back propagation neural network (BPNN) with hyperbolic tangent function, (2) BPNN with logistic function and (3) radial basis neural network (RBFN). They found that RBFN outperforms the other two. Dragos et al. (2000) demonstrated the use of ANN in automatic control of process. Casalino and Ludovico (2002) developed an ANN model to predict the process conditions for laser bending of SAE 1020 steel sheets. Maji et al. (2014) developed an ANN model to predict the process conditions for obtaining a particular dome height in three dimensional laser bending of a sheet. ANN model was able to predict the process conditions with good accuracy. Gisario et al. (2011) used neural network solutions to predict, control and manage the spring-back in laser assisted V-shape bending of thin aluminum sheets.

The review of literarture reveals that hard computing based modeling, viz., finite element method (FEM) has limited applications due to difficulty in realistic modeling of laser beam-work surface interaction and unavailability of non-linear material properties at higher temperatures. Limited attempts have been reported on inverse computation of the unknown process and material parameters. Mishra and Dixit (2013) determined absorptivity, thermal diffusivity and laser beam diameter by an inverse heat conduction method. They measured temperature at the centroid of bottom surface at different time intervals. The estimation of thermal properties from temperature measurements was constructed as a problem of minimization of the objective function with absorptivity, thermal diffusivity and beam diameter as decision variables. The implementation of inverse analysis provided good results. However, more than one combination of parameters provided same temperature variation with the time at a particular location. Therefore, Eideh and Dixit (2013) improved this model and carried out inverse determination by measuring temperature at two different locations. The objective was to minimize errors between predicted and measured temperature at two locations. The proposed methodology was found to be efficient and robust.

Most of the presented work considered constant absorptivity for various set of process conditions. However, in real practice, the absorptivity is not constant and depends on various parameters such as workpiece surface condition, properties of laser beam, temperature at the irradiating surface and the properties of workpiece material. Modeling of real behavior of absorptivity during laser bending process is difficult due to complex interaction between various parameters. In this work, an integrated FEM-ANN methodology for accurate prediction of laser bending for a wide range of process conditions is presented. It is assumed that the absorptivity depends on the set of laser parameters, viz. laser power, scanning velocity and beam diameter. Using FEM model, the absorptivity is predicted by inverse analysis technique for various set of process conditions. The predicted absorptivity and the corresponding laser parameters are used to train an artificial neural network. ANN model is developed to predict the absorptivity for a set of process conditions. The ANN model is integrated with the FEM model to incorporate predicted absorptivity for accurate simulation of laser bending process for a wide range of process conditions. Details of the methodology, results and discussion are presented in the next section.

Methods

Development of integrated FEM-ANN model for laser bending process

An integrated FEM-ANN methodology is proposed where absorptivity is predicted by an ANN model and is given as input to the FEM model for the simulation of laser bending process. Overall approach for the development of ANN model is shown in Fig. 1. The overall approach is mainly divided into five steps;
https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig1_HTML.gif

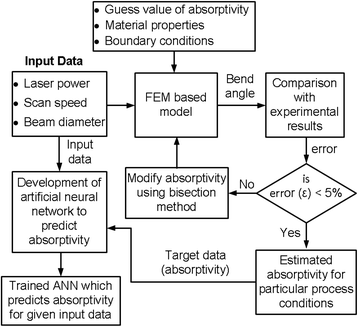

Fig. 1

Overall approach to predict the absorptivity

  1. 1.

    At first, a finite element model is developed for laser bending of magnesium alloy M1A sheet. The finite element model is used to simulate the laser bending process for various set of process conditions.


  2. 2.

    In second step, numerical results are compared with the experiments.


  3. 3.

    In third step, absorptivity is estimated by studying the difference between numerical and experimental results (error). A number of numerical simulations are carried out by varying the absorptivity such that the prediction error lies within an error band of ±5 %.


  4. 4.

    In fourth step, an artificial neural network (ANN) model is developed to predict the absorptivity. Process parameters, viz., laser power, scanning velocity and beam diameter are considered as input data while the estimated absorptivity obtained in Step 3 is used as the target data.


  5. 5.
    The developed ANN model is integrated with the FEM model as shown in Fig. 2. Absorptivity predicted by the ANN is used as input to the FEM model for accurate modeling of laser bending process. The proposed methodology is verified the experiments.
    https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig2_HTML.gif
    Fig. 2

    Integrated FEM-ANN approach for laser bending process



Development of numerical model for laser bending process

Three-dimensional nonlinear transient thermo-mechanical finite element method based numerical model is developed for the laser bending process. Coupled thermo-mechanical analysis is carried out by employing various input process parameters such as worksheet geometry, material properties, laser process parameters and the absorptivity. The computed plastic strains are used to obtain the deformation in the work sheets. The bend angle was computed by measuring distorted coordinates on the deformed work sheets.The details of the numerical model are presented below.

Sheet geometry and material properties

The numerical model was developed for magnesium alloy M1A. It is the Mg-Mn alloy with good corrosion resistant properties. The temperature-dependent and strain rate–dependent material properties available in Avedesian and Baker (1999) were employed in the this work. The geometry of the sheet was taken as 60 mm length, 40 mm width and 1.90 mm thickness.

Assumptions

Thermo-mechanical modeling of laser bending process involves complex interaction between laser process conditions, material properties and worksheet geometry. The important assumptions considered are as follows:
  • The worksheet material is isotropic and homogeneous.

  • The worksheet is considered to be flat and free of residual stresses.

  • Out of the laser heat applied, the energy stored due to plastic deformation is neglected.

  • The von-Mises criterion is used for plastic yielding.

  • The metals lose mechanical properties at melting point. Therefore, stiffness of material is taken very close to zero when temperature exceeds the melting point. As such the melting needs to be avoided.

Heat flux modeling

The laser beam was irradiated along a straight line at the middle of the length of workpiece at 30 mm from the free side as shown in Fig. 3. Beam diameter can be controlled by changing the stand-off distance between laser head nozzle and the worksheet surface. The beam diameter increases with the increase in the stand-off distance. The stand-off distance was converted into beam diameter by using standard beam propagation equations.
https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig3_HTML.gif
Fig. 3

Schematic of laser beam irradiation and various boundary conditions

Figure 4 shows the schematic of laser beam path, heat flux distribution and terminologies of laser beam. The relation between stand-off distance and beam diameter can be given as (Sun 1998),
https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig4_HTML.gif
Fig. 4

Schematic of laser beam profile

$$ R={w}_0\;{\left[\;1+{\left(\frac{M^2\;\lambda H}{\pi {w}_0^2}\right)}^2\right]}^{1/2} $$
(1)
where w 0 (=0.05 mm) is the laser beam waist which is the minimum beam radius at focal point of the lens, λ(=10.6 μm) is CO2 laser beam wavelength and H is the stand-off distance, the distance between focal point to the worksheet surface. M 2 is the beam quality factor. The M 2 is equal to 1 for perfect Gaussian beam but in real practice it is always greater than 1. The theoretical value of the beam waist can be given as (Sun 1998),
$$ {w}_0=\frac{M^2\;\lambda f}{\pi {r}_L} $$
(2)
where r L (=12 mm) is laser beam diameter before lens. The value of M 2 was calculated by putting w 0 = 0.05 mm in Equation (2) and was found to be equal to 1.4.
The laser beam was assumed to be Gaussian distributed circular shaped source of heat. The surface flux heat distribution q(x,y) induced by the laser beam moving with a scanning velocity, V, along the y direction can be defined as
$$ q\;\left(x,\;y\right)=\frac{A\eta\;P}{\pi {R}^2}\; exp\;\left({\frac{-2\left({x}^2+\left(y - Vt\right)\right)}{R^2}}^2\right) $$
(3)
where η is the absorptivity, P is the laser power, and R is the laser beam spot radius. The issue of absorptivity is discussed in detail in Section 'Inverse computation for prediction of absorptivity' and Section 'ANN model for estimating absorptivity'. The coefficient A decides the distribution and the magnitude of maximum heat flux inside the beam diameter. The value of A can lie between 2 and 3. In this work, the value of A is taken as 2.31, which distributes the heat (ηP) within a circle of radius equal to beam radius.

Thermal analysis

The initial temperature of the worksheet was set equal to the room temperature. The temperature distribution was changed due to laser irradiation. The inter-convertibility of thermal and mechanical energy was ignored as heat stored due to deformation is negligible as compared with applied laser heat. Therefore, transient temperature field generated was determined by using three dimensional heat conduction equation
$$ \rho c\;\frac{\partial T}{\partial t}=\nabla \cdot \kern.28em \left(k\nabla T\right) $$
(4)
where ρ, c, T, t and k are the worksheet density, specific heat, temperature, time and thermal conductivity respectively.The heat loss to the surrounding occurs due to convection and radiation losses. These boundary conditions affect the temperature distribution. The thermal boundaries were modelled using lumped convection heat loss. The lumped convection heat loss (q c ) was calculated by
$$ {q}_c=h\;\left({T}_s-{T}_e\right) $$
(5)
where h = 25 W / m2 − °C is the convective heat transfer coefficient, T s is the worksheet temperature and T e  = 20 °C is the environmental temperature. The melting was incorporated by considering the latent heat near the melting range of temperature. The solidus and liquidus temperature of the material is 648 and 649 °C respectively. Incorporation of latent heat in such a small range of melting temperature destabilizes the process of solving the numerical problem. Therefore, latent heat was distributed over the temperature range of 645–655 °C. The latent heat of the magnesium M1A is 370 kJ/kg-°C and the distributed latent heat for the range 645–655 °C was taken as 37 kJ/kg-°C.

Mechanical analysis

The mechanical analysis was performed to get stress–strain distribution and elastic–plastic distortions. The distortions were used to get the bend angle and edge displacements. The worksheet was assumed to be clamped at one side (shown in Fig. 3). The mechanical constraint, zero displacement and zero rotation, was applied at one side (clamped side) of the worksheet. The total strain and strain rate can be decomposed into elastic, plastic, creep and thermal components of strain and strain rate. However, the deformation occurs at relatively short time scale and the contribution of creep can be neglected. Hence, the effect of creep was not considered. The total strain rate as a sum of elastic, plastic and thermal strain rate was given as,
$$ {\dot{\varepsilon}}_{total}={\dot{\varepsilon}}_{elastic}+{\dot{\varepsilon}}_{plastic}+{\dot{\varepsilon}}_{thermal} $$
(6)
Elastic strains were calculated through an isotropic Hook’s law and yielding was determined by using the von-Mises criterion which is widely accepted for the ductile materials. The von-Mises criteria can be expressed as
$$ \frac{1}{2}\left[{\left({\sigma}_1-{\sigma}_2\right)}^2+{\left({\sigma}_2-{\sigma}_3\right)}^2+{\left({\sigma}_1-{\sigma}_3\right)}^2\right]={\sigma}_y^2 $$
(7)
where σ y is the temperature dependent flow stress and σ 1, σ 2 and σ 3 are x, y and z stress components respectively. The material properties get significantly affected by temperature and the strain rate. Therefore, temperature and strain rate dependent yielding was considered. The strain rate dependent flow stress is given as
$$ {\sigma}_y=C\;{\dot{\varepsilon}}^m $$
(8)
where C is the strength coefficient and m is the strain rate sensitivity exponent. The C and m are temperature dependent parameters. In mechanical analysis, the melting was incorporated by reducing the stiffness of elements after melting point of the material. The stiffness was taken near to zero at melting point. At melting point, the yield stress and elastic modulus were taken as 10− 6 MPa.

Solution methodology

The developed numerical model was solved by using commercial finite element software ABAQUS™. The worksheet continuum was discretized with three-dimensional linear hexahedron elements. These elements have 8 nodes and 6 quadrilateral faces as shown in Fig. 5. In ABAQUS, three-dimensional linear hexahedron eight node element ‘C3D8T’, which are specially meant for coupled thermo-mechanical analysis were selected for the discretization of the worksheet. Selection of this element can provide node temperature (NT11), element temperature (TEMP), stresses, strains and distortions as an output. The heated and nearby region was discretized by using uniform mesh of element size 0.5 mm and outer region was discretized by using coarse biased mesh. In the thickness direction four equidistant elements were taken. The scheme of worksheet meshing is shown in Fig. 5. The effect of mesh distortion on thermal and mechanical analysis was taken into account. The same mesh model was used for both thermal and mechanical analyses.
https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig5_HTML.gif

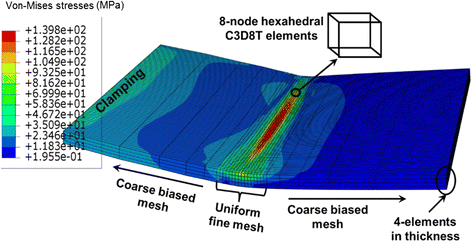

Fig. 5

The worksheet meshing scheme

The equations solved in coupled thermo-mechanical analysis are equations of motion and heat conduction equation. These equations were solved by using Full Newton technique. In this technique, target stiffness matrix is evaluated at each iteration. This helps in getting proper convergence even when the guess value is far away from the solution. Also, the stiffness matrix is more accurate in each iteration which provides a better prediction accuracy.However, computationally, it is not as efficient as Modified Newton method, in which sometimes, convergence is not achieved (Bathe 1996). The automatic time step was selected with maximum time increment of 0.02 s. The maximum temperature change in a step was taken as 30 °C.

Experimental details

The experimental studies were performed on the commercially available magnesium alloy M1A sheet of thickness 1.9 mm. The compositions of material were 98.07 % of magnesium and 1.93 % of manganese. The specimens of 70 mm length and 40 mm width were cut using laser cutting machine. For each specimen, length 70 mm was taken along rolling direction of the sheet. Out of 70 mm, 10 mm was used in clamping and remaining 60 mm was freely hanging as a cantilever as shown in Fig. 7. The specimens were cleaned with cloth to remove dust and other extra particles. The metals have high reflectivity but the presence of oxides and contaminants can increase the absorptivity. The oxides and other contaminants may not have uniform distribution and similar properties along the scanning length. It results in large difference in absorptivity along the scanning line. Therefore, the specimens were coated with graphite spray to increase the absorptivity and also to ensure uniform absorptivity along the scanning line as shown in Fig. 6. The sprayed specimens were then allowed to dry under normal room conditions.
https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig6_HTML.gif
Fig. 6

Specimen details

The specimen was clamped over the laser machine bed using a fixture as shown in Fig. 7. The laser heating was performed by using LVD Orion 3015 2.5 kW continuous wave CO2 laser machine. The laser beam was irradiated along the predefined path. The laser parameters laser power, scanning velocity and beam diameter were varied. Each experiment was performed with three trials to check the repeatability. The specimens were allowed to cool naturally after laser beam irradiation. Due to laser beam irradiation, the specimens were bent. By using Zeiss made (Model: VISTA; 1620–14, DCC, BND, K) coordinate measuring machine (CMM), the bend angle was measured at the middle of scanning path. For a set of process conditions, the average of three trials was considered as the experimental value. Figure 8 shows laser irradiated specimen. It can be observed that due to laser heating, the coating burnt out and the worksheet bent as shown in Fig. 8a and b respectively. The experimental results for various set of experiments are shown in Table 1. The coefficient of variation is calculated as the standard deviation divided by the mean of three trials. It can be observed from Table 1 that the coefficient of variation is high in a few cases especially when the bend angle is small. It is because when bend angle is less, a small variation results in the higher value of coefficient of variation.
https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig7_HTML.gif
Fig. 7

Laser machine and worksheet clamping details

https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig8_HTML.gif
Fig. 8

Laser irradiated specimen (a) top viw (b) front view

Table 1

Bend angle and absorptivity for various process conditions

Data No.

Power (W)

Velocity (mm/min)

SD (mm)

Beam Diameter (mm)

A: Average Bend Angle

Experimental study (°)

Coefficient of Variation (%)

B: Bend Angle Numerical simulation (°)

Absolute Error = \( \left|\frac{\left(A-B\times 100\right)}{A}\right| \) (%)

Absorptivity

1

300

1000

20

3.87

1.07

4.11

1.10

2.40

0.63

2

300

1000

30

5.81

0.73

3.14

0.72

0.75

0.67

3

300

1000

40

7.74

0.49

4.6

0.47

3.25

0.72

4

300

1000

50

9.68

0.21

24.86

0.20

3.18

0.725

5

300

2000

20

3.87

0.84

3.96

0.84

0.04

0.72

6

300

2000

30

5.81

0.31

3.77

0.31

1.40

0.74

7

300

2000

40

7.74

0.12

18.09

0.13

4.17

0.8

8

300

2000

50

9.68

0.05

29.31

0.05

3.54

0.875

9

300

3000

20

3.87

0.6

19.31

0.62

3.83

0.83

10

300

3000

30

5.81

0.14

18.62

0.15

4.44

0.84

11

300

3000

40

7.74

0.09

20.56

0.10

4.15

0.95

12

300

3000

50

9.68

a

a

a

a

0.98

13

300

5000

20

3.87

0.26

2.46

0.25

3.35

0.81

14

300

5000

30

5.81

0.16

33.25

0.17

4.87

0.98

15

300

5000

40

7.74

a

a

a

a

0.99

16

300

5000

50

9.68

a

a

a

a

1.0

17

500

1000

20

3.87

0.99

7.31

0.95

4.35

0.825

18

500

1000

30

5.81

0.94

1.44

0.95

0.57

0.8

19

500

1000

40

7.74

0.75

18.69

0.78

4.11

0.6

20

500

1000

50

9.68

0.53

12.94

0.55

4.08

0.54

21

500

2000

20

3.87

1.42

15.45

1.35

4.77

0.52

22

500

2000

30

5.81

1

7.58

0.97

2.54

0.59

23

500

2000

40

7.74

0.72

13.98

0.71

1.24

0.66

24

500

2000

50

9.68

0.4

0.67

0.41

3.30

0.68

25

500

3000

20

3.87

1.27

6.63

1.14

1.91

0.57

26

500

3000

30

5.81

0.84

15.93

0.85

0.74

0.67

27

500

3000

40

7.74

0.34

12.29

0.38

1.10

0.69

28

500

3000

50

9.68

0.14

0

0.14

2.26

0.715

29

500

5000

20

3.87

0.74

11.42

0.74

0.65

0.625

30

500

5000

30

5.81

0.26

22.3

0.34

3.43

0.67

31

500

5000

40

7.74

0.12

19.97

0.12

3.00

0.785

32

500

5000

50

9.68

0.05

33.44

0.05

1.58

0.88

33

700

1000

20

3.87

0.35

4.89

0.34

4.16

0.8

34

700

1000

30

5.81

0.57

12.18

0.56

2.36

0.79

35

700

1000

40

7.74

0.75

3.75

0.72

4.51

0.8

36

700

1000

50

9.68

0.64

17.7

0.67

4.69

0.9

37

700

2000

20

3.87

1.05

6.32

1.02

2.39

0.8

38

700

2000

30

5.81

1.3

13.67

1.33

2.29

0.78

39

700

2000

40

7.74

0.96

5.85

1.00

4.34

0.57

40

700

2000

50

9.68

0.8

18.81

0.78

2.78

0.64

41

700

3000

20

3.87

1.68

2.02

1.61

4.16

0.67

42

700

3000

30

5.81

1.16

9.42

1.18

1.72

0.55

43

700

3000

40

7.74

1.1

16.09

1.05

4.84

0.68

44

700

3000

50

9.68

0.52

28.03

0.52

0.36

0.75

45

700

5000

20

3.87

0.94

30.25

0.92

2.24

0.5

46

700

5000

30

5.81

0.9

5.45

0.89

1.41

0.63

47

700

5000

40

7.74

0.72

6.99

0.73

0.88

0.76

48

700

5000

50

9.68

0.18

15.48

0.18

2.16

0.71



Average error =2.77 %

a = insignificant bend angle

Inverse computation for prediction of absorptivity

Absorptivity is an important characteristic of the material which can be obtained easily by some experimental techniques usually based on spectroscopy (Stuart, 2004). A spectrophotometer can find out the ratio of reflected to incident radiation for a particular wavelength, from which the absorptivity can be calculated. However, usually the commercially available spectrophotometers have provision to find out the reflectivity or absorptivity only when the specimen is at room temperature. In laser bending, a high temperature profile generates into the workpiece, which depends on the complex interaction of laser power, scanning velocity, beam geometry, number of scans, workpiece surface condition, wavelength of the laser beam, phase transformation and surrounding conditions. It is not possible to measure the absorptivity by considering all these real-time conditions during laser bending process. In this scenario, inverse analysis is one of the best methodologies to predict the unknown parameters. The use of inverse analysis to predict the unknown parameter is widely used and accepted by the research community for many real-time problems (Mishra and Dixit 2013, Eideh and Dixit 2013).

In general, the researchers use a constant value of absorptivity for all sets and ranges of process parameters. It is a common practice in modeling and simulation of the laser bending process using physics based hard computing methods viz. FEM (Hu et al. 2001, Zhang et al. 2002, Yanjin et al. 2005, Kant and Joshi 2013). This equivalent absorptivity depends on many factors such as amount of burnt coating, temperature of the surface, plasma generated, melting condition, phase transformation, contact time and contact area of laser beam etc. For a system, these factors depend on the set of process parameters and mainly on the laser power, scanning velocity and beam diameter. Therefore, the equivalent absorptivity is determined by inverse analysis technique using developed finite element model. The schematic of the inverse computation is shown in Fig. 1. The bend angle obtained from FEM model was compared with the bend angle obtained during experimental studies. The absorptivity was tuned up using a bisection method (Rao 1984) to get the FEM results within ±5 % error as compared with the experimental results. Finally, the tuned absorptivity was considered as the equivalent absorption for the particular set of process parameters. The predicted absorptivities are shown in Table 1. It is seen that the process conditions have significant effect on the absorptivity. The computed/obtained absorptivity varies from 0.50 to 1.

In order to assess the effectiveness of proposed method, a few measurements of absorptivity were carried out using Fourier Transform Infrared-Spectrometer (model: Spectrum BX, make: Perkin Elmer). The normalized absorbance, A b , is expressed as the common logarithm of the ratio of incident radiation to reflected radiation. The samples were placed in the spectrometer after laser scanning was complete. The surface property may undergo some change after laser scanning; hence the comparison of computed absorptivity and absorbance by Spectrometer should be treated as qualitative rather than quantitative. It is to be emphasized that when the measurement of absorptivity during the process is not possible, it is better to measure the absorptivity at the end of the process rather than at the beginning of the process. The measurement at the end of process will be closer to that during the process compared to measurement at the beginning of the process.

Table 2 shows the comparison of inversely calculated absorptivity and absorbance obtained by the spectrometer. It is observed that the qualitative agreement between them is very good. This provides confidence in the proposed methodology of inverse estimation of absorptivity.
Table 2

Comparison of inversely computed absorptivity and absorbance by spectrometer

P (W)

V (mm/min)

D (mm)

Inversely calculated absorptivity

Absorbance by spectrometer

300

2000

3.87

0.72

0.727

300

1000

3.87

0.63

0.675

700

2000

9.68

0.64

0.687

700

5000

7.74

0.76

0.770

700

3000

3.87

0.67

0.690

500

3000

5.81

0.67

0.662

300

3000

3.87

0.83

0.805

P = Laser power, V = Scanning velocity, D = Beam diameter

ANN model for estimating absorptivity

As discussed earlier, the theoretical modeling of absorptivity is difficult and therefore it was found convenient to develop a comprehensive absorptivity model using ANN for quick and accurate prediction. The model was developed in MATLAB®. The inputs to the neural network were laser power, scanning velocity and beam diameter and the output was the corresponding absorptivity obtained by inverse analysis. Total 38 training datasets and 10 testing datasets were employed for training and testing of the ANN respectively. The training and testing datasets are shown in Table 3 and Table 4. The feed forward back propagation neural network (BPNN) with Scaled Conjugate Gradient (SCG) algorithm was used for training. The schematic diagram of BPNN with two hidden layers, one input layer and one output layer is shown in Fig. 9. A number of trials were carried out by varying the number of hidden layers and the number of neurons in each hidden layers to choose the optimal architecture. The 3–10–8–1 architecture was found to be more accurate in absorptivity prediction. This network has more number of parameters than the number of training datasets. Normally, the number of training datasets is more than the number of parameters in a model. However, the real test of the performance of a neural network is made by the testing dataset. The developed ANN model is tested with 10 datasets which are shown in Table 2. By the simple analysis presented in Kohli and Dixit (2005), if we assume that 80 % time the neural network predicts within the prescribed error, the probability of passing the network with 10 testing data is (0.8)10 = 0.1. Thus, there is only 10 % chance that a network which correctly predicts 80 % of the time will be passed by testing data. In other words, we can have a 90 % confidence in such a network. This is reasonable for many engineering applications. It is seen that the modeled network predicts the testing dataset within 0.002–1.365 % of error band. The average error is about 0.281 % and the maximum error is about 1.365 % for the selected dataset. The predicted accuracy was found to be very good for the absorptivity prediction. Thus the proposed approach can be used to predict absorptivity quickly and accurately for the given input process conditions. The ANN model was further integrated with the FEM model to incorporate the process parameter dependent absorptivity for enhancement in the accuracy of the numerical simulations. The absorptivity was derived from ANN model and incorporated in the FEM based numerical simulations for accurate process simulations.
Table 3

Training dataset

Data set No.

Power (W)

Velocity (mm/min)

Beam Diameter (mm)

Absorptivity

1

300

1000

3.87

0.63

2

300

1000

5.81

0.67

4

300

1000

9.68

0.725

5

300

2000

3.87

0.72

6

300

2000

5.81

0.74

7

300

2000

7.74

0.8

9

300

3000

3.87

0.83

10

300

3000

5.81

0.84

11

300

3000

7.74

0.95

12

300

3000

9.68

0.98

14

300

5000

5.81

0.98

15

300

5000

7.74

0.99

16

300

5000

9.68

1.0

17

500

1000

3.87

0.825

18

500

1000

5.81

0.8

19

500

1000

7.74

0.6

20

500

1000

9.68

0.54

21

500

2000

3.87

0.52

22

500

2000

5.81

0.59

23

500

2000

7.74

0.66

25

500

3000

3.87

0.57

26

500

3000

5.81

0.67

27

500

3000

7.74

0.69

29

500

5000

3.87

0.625

31

500

5000

7.74

0.785

32

500

5000

9.68

0.88

34

700

1000

5.81

0.79

35

700

1000

7.74

0.8

36

700

1000

9.68

0.9

37

700

2000

3.87

0.8

38

700

2000

5.81

0.78

39

700

2000

7.74

0.57

41

700

3000

3.87

0.67

42

700

3000

5.81

0.55

44

700

3000

9.68

0.75

46

700

5000

5.81

0.63

47

700

5000

7.74

0.76

48

700

5000

9.68

0.71

Table 4

Testing datasets

Data set No.

P (W)

V (mm/min)

D (mm)

Absorptivity

3

300

1000

7.74

0.72

8

300

2000

9.68

0.875

13

300

5000

3.87

0.81

24

500

2000

9.68

0.68

28

500

3000

9.68

0.715

30

500

5000

5.81

0.67

33

700

1000

3.87

0.8

40

700

2000

9.68

0.64

43

700

3000

7.74

0.68

45

700

5000

3.87

0.5

https://static-content.springer.com/image/art%3A10.1186%2Fs40759-015-0006-1/MediaObjects/40759_2015_6_Fig9_HTML.gif
Fig. 9

Schematic of BPNN

Results and discussion

Verification of the developed FEM–ANN methodology

The developed methodology is validated with the fresh experimental results. The current FEM–ANN approach was assessed for the effectiveness and robustness by conducting some verifying experiments. The verification parameters were randomly selected within the range of ANN training datasets: laser power 300–700 W; scanning velocity 1000–5000 mm/min and stand-off distance 20–50 mm. The verification was done for totally new 8 datasets. For these datasets absorptivities were predicted by using developed ANN model. The predicted absorptivities and corresponding sets of process conditions were given as input to the FEM based model and bend angles were calculated. The calculated bend angles using current approach were compared with the bend angle obtained during experiments for the same sets of process conditions. The verification results are shown in Table 5. It can be seen that the proposed FEM–ANN approach have good prediction capability. During verification experiments, the bend angle was predicted within an error range of 1.08–7.62 %. The average error was found to be 4.14 %.
Table 5

Results of verification experiments

S. No.

Power (W)

Velocity (mm/min)

SD (mm)

Beam diameter (mm)

ANN predicted absorptivity

Computed bend angle with the numerical model (°)

Average value of bend angle in Experiments (°)

Error in bend angle (%)

1

650

2000

45

8.710

0.638

0.856

0.816

4.90

2

500

2500

30

5.807

0.648

0.885

0.863

2.55

3

450

4500

30

5.807

0.847

0.473

0.512

7.62

4

400

3500

35

6.775

0.86

0.314

0.305

2.95

5

600

1500

35

6.775

0.773

1.189

1.202

1.08

6

350

3000

40

7.743

0.938

0.179

0.171

4.68

7

700

4000

20

3.872

0.551

1.546

1.469

5.24

8

500

3500

50

9.678

0.777

0.109

 0.118

7.62 



Average error = 4.14 %

The proposed methodology is very suitable for the shop floor applications. With the development of newer materials and variation in the quality of the surface as well as coating, a handy method for the estimation of absorptivity is always useful. Even if the absorptivity data is available, it may be required to fine tune that data in real applications depending on the processing conditions. The main contribution of this work is to provide a suitable methodology, which can be easily employed in industrial practice. With correct values of absorptivity, FEM model can obtain the stress, strain, strain-rate and temperature distribution. This also helps in developing microstructural model for the process.

Conclusions

In this work, an FEM–ANN based integrated approach is developed for accurate computation of bend angle during laser bending process. Initially three-dimensional nonlinear thermo-mechanical FEM based numerical model is developed for computation of bend angle for given process conditions. The absorptivity used in the numerical model was then tuned by using inverse analysis technique. In this technique, FEM simulations were repeated by varying the values of absorptivity. The value of absorptivity for each set of process condition was estimated by comparing the bend angle obtained in the numerical and experimental studies so that the computational error of bend angle is less than 5 %. Based on the estimated values of absorptivity and the corresponding input process conditions, an ANN based model was developed for fast and accurate prediction of absorptivity. Then, the ANN based absorptivity was employed in the FEM model for computation of bend angle. Within the scope of process conditions used in the present work, the proposed approach was found to be accurate in the computation of bend angle with an average error of 4.14 %. The estimated absorptivity is a fitting parameter as it serves the purpose of correctly estimating the bend angle. However, it also matches qualitatively with the experimentally determined absorbance. This approach can be used for accurate computation of process responses in the other laser based manufacturing processes viz. laser welding, laser machining, etc.

Declarations

Acknowledgements

Partial funding from the Engineering and Physical Sciences Research Council (UK) through grant EP/K028316/1 and Department of Science and Technology (India) through grant DST/RC-UK/14-AM/2012, project Modeling of Advanced Materials for Simulation of transformative Manufacturing Processes (MAST) is gratefully acknowledged. The 2.5 kW CO2 Laser Cutting Machine was purchased under DST_FIST scheme of Department of Science and Technology, India (Sanction no. SR/FST/ETI-244/2008, Date: 17.03.2009).

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Mechanical Engineering, Indian Institute of Technology Guwahati

References

  1. Avedesian MM, Baker H (1999) Magnesium and magnesium alloys, 2nd edn. International, ASMGoogle Scholar
  2. Bathe KJ (1996) Finite element procedures. Prentice Hall of India Pvt. Ltd., New DelhiGoogle Scholar
  3. Casalino G, Ludovico AD (2002) Parameter selection by an artificial neural network for a laser bending process. Proceedings of the Institution of Mechanical Engineers, Part B. J Eng Manuf 216:1517–1520View ArticleGoogle Scholar
  4. Chen D, Wu S, Li M (2004) Deformation behaviours of laser curve bending of sheet metals. J Mater Process Technol 148:30–34View ArticleGoogle Scholar
  5. Cheng J, Yao Y (2001) Cooling effects in multiscan laser forming. J Manuf Process 3:60–72View ArticleGoogle Scholar
  6. Cheng P, Lin S (2000) Using neural networks to predict bending angle of sheet metal formed by laser. Int J Mach Tool Manuf 40:1185–1197View ArticleGoogle Scholar
  7. Dragos V, Dan V, Kovacevic R (2000) Prediction of the laser sheet bending using neural network. International symposium on Circuits and systems, Geneva, Switzerland, pp III–686–III–689Google Scholar
  8. Eideh A, Dixit US (2013) A robust and efficient inverse method for determining the thermal parameters during laser forming. Proceedings of National Conference of Recent Advancements in Mechanical Engineering. NERIST, Nirjuli, India, pp 38–43.
  9. Gisario A, Barletta M, Conti C, Guarino S (2011) Springback control in sheet metal bending by laser-assisted bending: Experimental analysis, empirical and neural network modelling. Opt Lasers Eng 49:1372–1383View ArticleGoogle Scholar
  10. Gisario A, Barletta M, Venettacci S, Veniali F (2015a) Laser-Assisted Bending of Sharp Angles With Small Fillet Radius on Stainless Steel Sheets: Analysis of Experimental Set-Up and Processing Parameters. Lasers in Manufacturing and Materials Processing 2:57–73View ArticleGoogle Scholar
  11. Gisario A, Barletta M, Venettacci S, Veniali F (2015b) External force-assisted LaserOrigami (LO) bending: Shaping of 3D cubes and edge design of stainless steel chairs. J Manuf Process 18:159–166View ArticleGoogle Scholar
  12. Gollo MH, Mahdavian SM, Moslemi NH (2011) Statistical analysis of parameter effects on bending angle in laser forming process by pulsed Nd: YAG laser. Journal of Optics and Laser Technology 43:475–82View ArticleGoogle Scholar
  13. Hu Z, Labudovic M, Wang H, Kovacevic R (2001) Computer simulation and experimental investigation of sheet metal bending using laser beam scanning. Int J Mach Tool Manuf 41:589–607View ArticleGoogle Scholar
  14. Jamil M, Sheikh M, Li L (2011) A study of the effect of laser beam geometries on laser bending of sheet metal by buckling mechanism. Opt Laser Technol 43:183–193View ArticleGoogle Scholar
  15. Kant R, Joshi SN (2013) Finite element simulation of laser assisted bending with moving mechanical load. International Journal of Mechatronics and Manufacturing Systems 6:351–366View ArticleGoogle Scholar
  16. Kant R, Joshi SN (2014) Numerical modeling and experimental validation of curvilinear laser bending of magnesium alloy sheets. Proceedings of the Institute of Mechanical Engineering Part B. J Eng Manuf 228:1036–1047View ArticleGoogle Scholar
  17. Kohli A, Dixit US (2005) A neural-network-based methodology for the prediction of surface roughness in a turning process. Int J Adv Manuf Technol 25:118–129View ArticleGoogle Scholar
  18. Rao SS (1984) Optimization: theory and applications, 2nd edn. Wiley Eastern Ltd, New YorkMATHGoogle Scholar
  19. Li W, Yao Y (2000) Numerical and experimental study of strain rate effects in laser forming. J Manuf Sci Eng 122:445–451View ArticleGoogle Scholar
  20. Maji K, Pratihar DK, Nath AK (2014) Laser forming of a dome shaped surface: Experimental investigations, statistical analysis and neural network modeling. Opt Lasers Eng 53:31–42View ArticleGoogle Scholar
  21. Mishra A, Dixit US (2013) Determination of thermal diffusivity of the material, absorptivity of the material and laser beam radius during laser forming by inverse heat transfer. Journal of Machining and Forming Technologies 5:207–226Google Scholar
  22. Pitz I, Otto A, Schmidt M (2010) Simulation of the laser beam forming process with moving meshes for large aluminium plates. Phys Procedia 5:363–369View ArticleGoogle Scholar
  23. Shen H, Hu J, Yao Z (2011) Cooling effects in laser forming. Mater Sci Forum 663–665:58–63Google Scholar
  24. Shen H, Hu J, Yao Z (2010) Analysis and control of edge effects in laser bending. Opt Lasers Eng 48:305–315View ArticleGoogle Scholar
  25. Shen H, Yao Z, Hu J (2009) Numerical analysis of metal/ceramic bilayer materials systems in laser forming. Comput Mater Sci 45:439–442View ArticleGoogle Scholar
  26. Shi Y, Yao Z, Shen H, Hu J (2006) Research on the mechanisms of laser forming for the metal plate. Int J Mach Tools Manuf 46:1689–1697View ArticleGoogle Scholar
  27. Stuart BH (2004) Infrared Spectroscopy: Fundamentals and Applications. John Wiley & Sons, West SussexView ArticleGoogle Scholar
  28. Sun H (1998) Thin lens equation for a real laser beam with weak lens aperture truncation. Opt Eng 37:2906–2913View ArticleGoogle Scholar
  29. Wu D, Zhang Q, Ma G, Guo Y, Guo D (2010) Laser bending of brittle materials. Opt Lasers Eng 48:405–410View ArticleGoogle Scholar
  30. Yanjin G, Sheng S, Guoqun Z, Yiguo L (2003) Finite element modeling of laser bending of pre-loaded sheet metals. J Mater Process Technol 142:400–407View ArticleGoogle Scholar
  31. Yanjin G, Sheng S, Guoqun Z, Yiguo L (2005) Influence of material properties on the laser-forming process of sheet metals. J Mater Process Technol 167:124–131View ArticleGoogle Scholar
  32. Yao Z, Shen H, Shi Y, Hu J (2007) Numerical study on laser forming of metal plates with pre-loads. Comput Mater Sci 40:27–32View ArticleGoogle Scholar
  33. Zhang P, Guo B, Shan D, Ji Z (2007) FE simulation of laser curve bending of sheet metals. J Mater Process Technol 184:157–162View ArticleGoogle Scholar
  34. Zhang X, Chen G, Xu X (2002) Numerical Simulation of Pulsed Laser Bending. J Appl Mech 69:254–260MATHView ArticleGoogle Scholar

Copyright

© Kant et al. 2015
